Product Features：
These drivers are IP20 rated and are suitable for indoor installations. With universal input voltage ranging from 170 to 250VAC, the series of drivers are designed for commercial, industrial and residential applications. Our 0-10V dimming delivers smooth flicker-free linear dimming down to 0% with most LED’s and a wide variety of compatible dimmers. As always, a 3-year warranty is a standard on all Cheng Li xin products.
Features
0-10V dimmable - flicker free down to 0%
IP20 - Indoor Use
Ripple Free
Auto-Reset Protection for Short Circuit and Over-Temperature
Over Load Protection - CC Mode
|

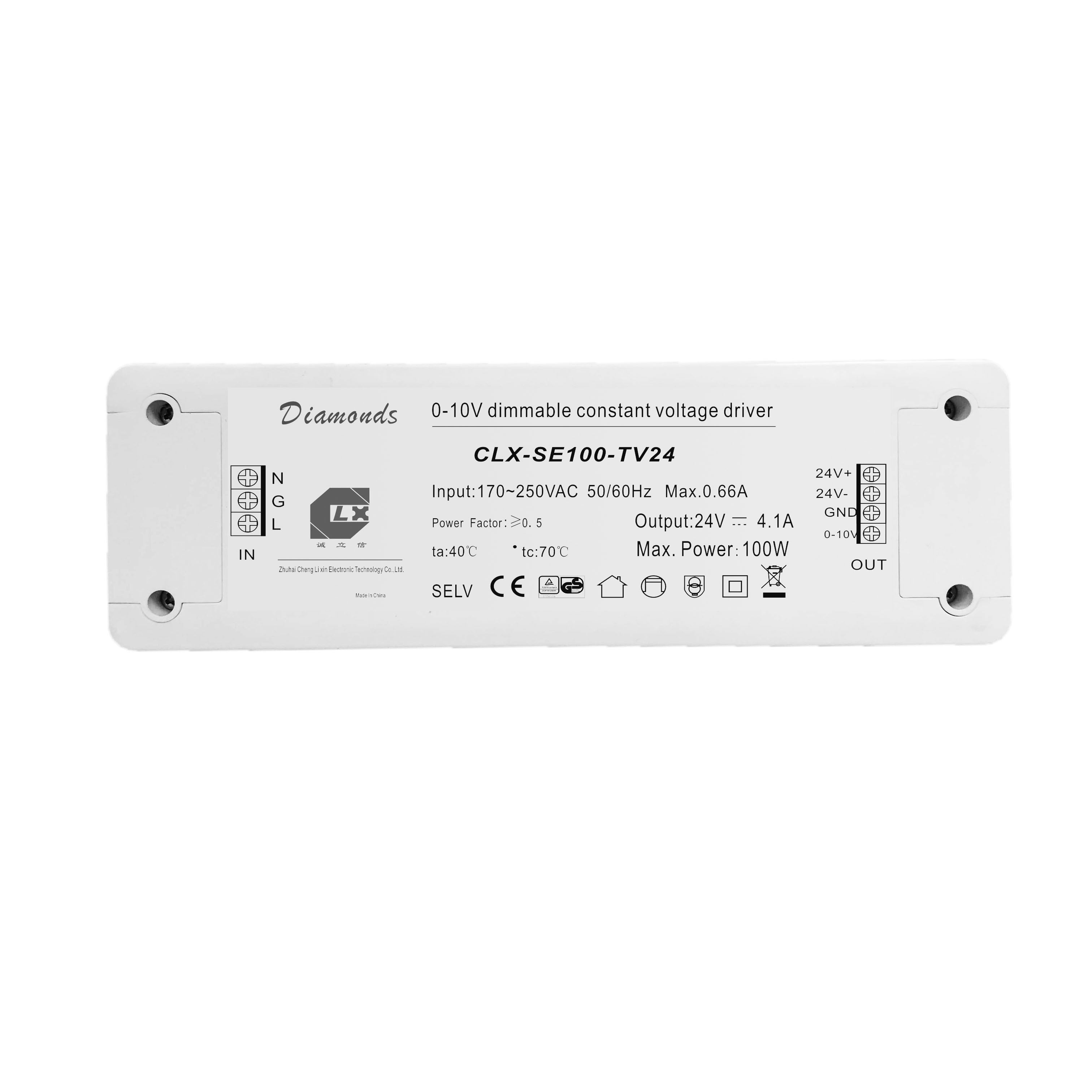

Model |
CLX-SE100-TV24 |
|
|
Output |
DC Voltage |
24V |
|
Voltage Accuracy |
±0.5V |
|
|
Rated current |
4.1A |
|
|
Rated power |
100W |
|
|
Input
|
age Range |
170-250VAC |
|
Frequency Range |
47~63HZ |
|
|
Power Factor ( Typ.) |
PF≥0.5 |
|
|
Full Load Efficiency(Typ.) |
≥85% |
|
|
|
|
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
Over voltage |
<270VAC |
|
|
Over temperature |
100°C±10°C shut down o/p voltage, re-power on to recover |
|
|
Environment |
Working TEMP. |
-25～+55°C |
|
Working Humidity |
10~90%RH,non-condensing |
|
|
Storage TEM.,Humidity |
-40~+70°C,10~90%RH |
|
|
TEMP.coefficient |
±0.03%/°C(0~50°C) |
|
|
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes. |
|
|
Safety&EMC |
Safety standards |
EN601347-2-13 |
|
Withstand voltage |
I / P- O /P ::3. 75KVAC I/P -FG :1. 88KVAC O/ P -FG :0 . 5KVAC |
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25°C/70%RH |
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8, 11,EN61547,A light industry level |
|
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≥50%load) |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°Cof ambient temperature.
2.Tolerance:includes set us tolerance,line regulation and load regulation .
|
|

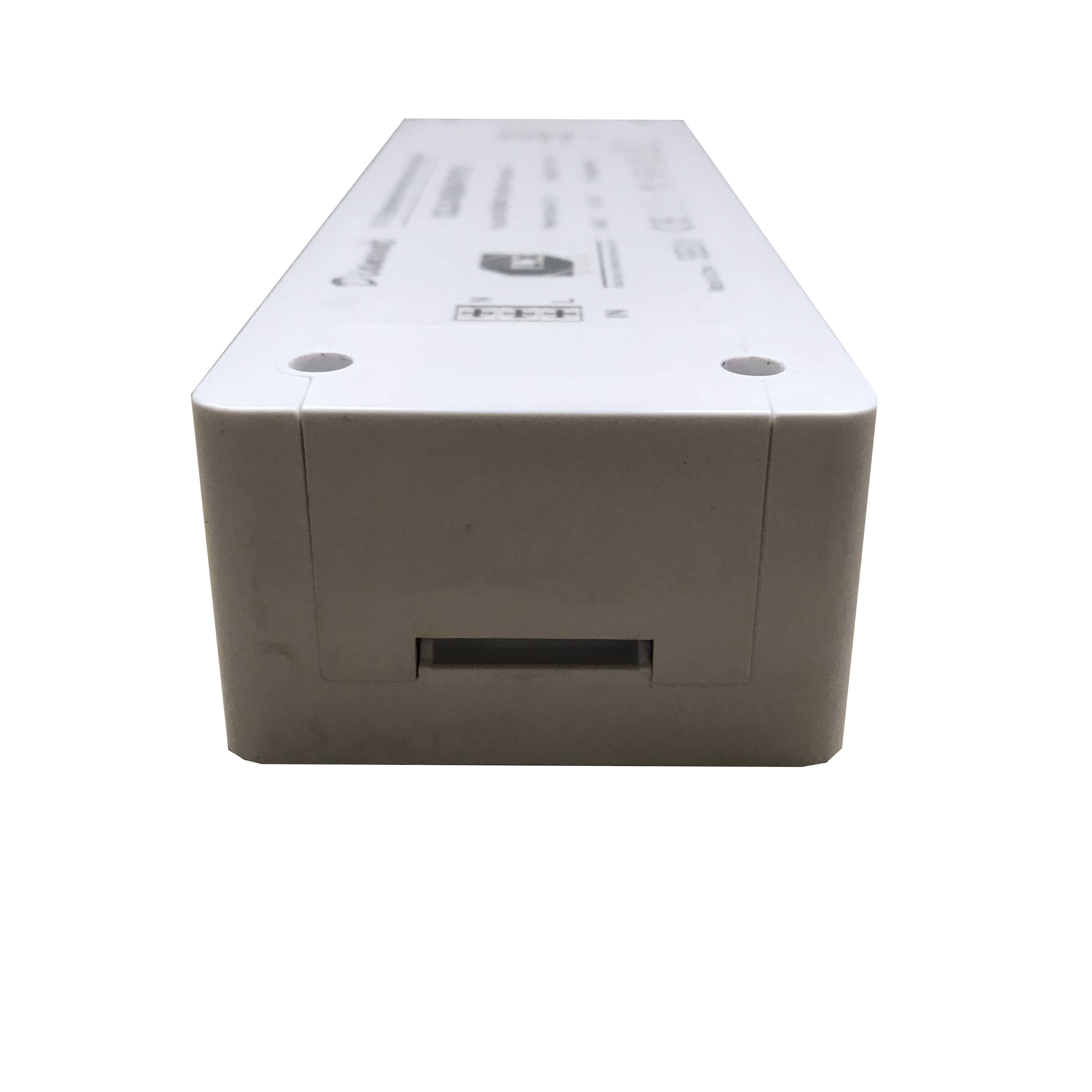

Dimensions: length × width × height = 190（±0.2）×64（±0.2）×31（±0.5）
Location hole size as below:
