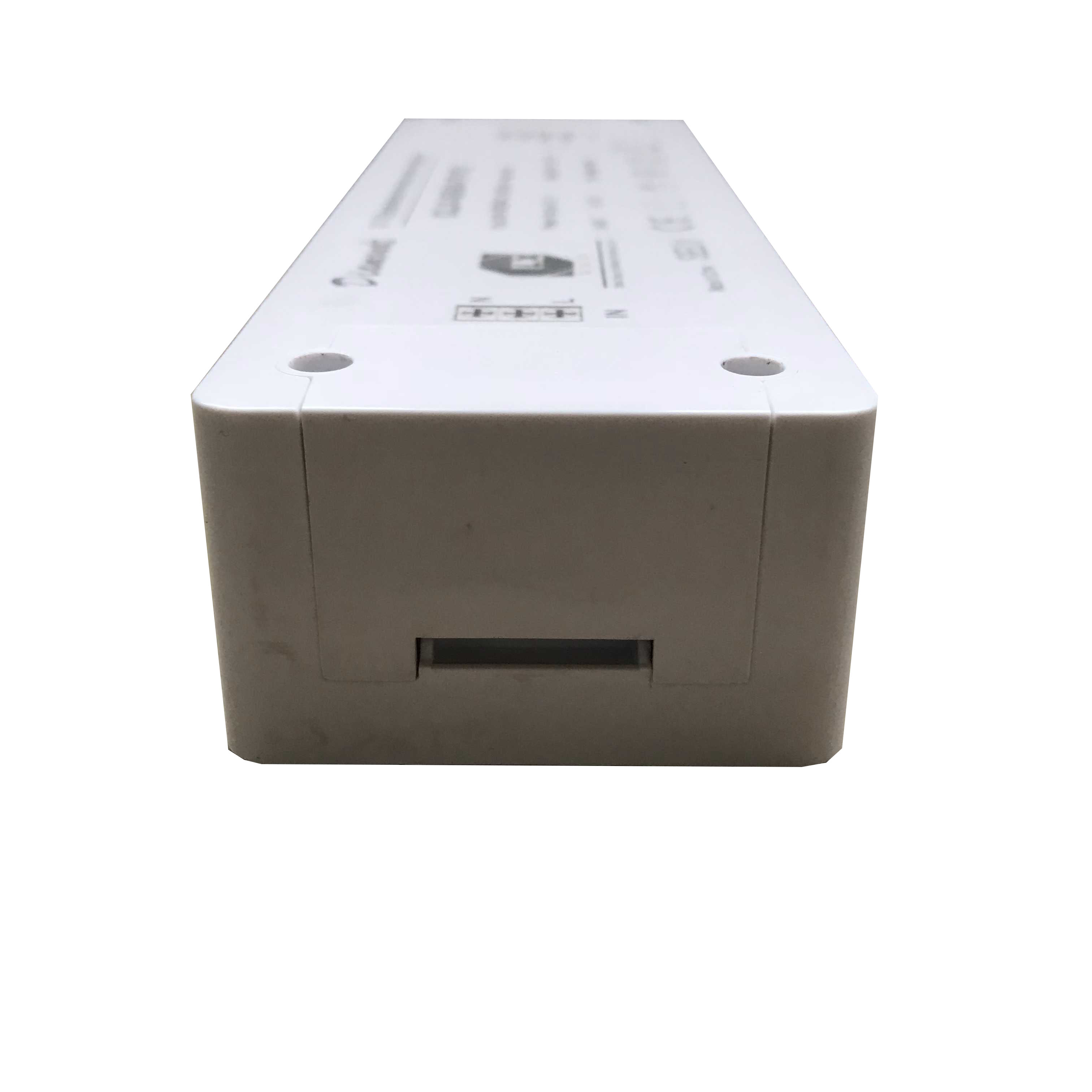

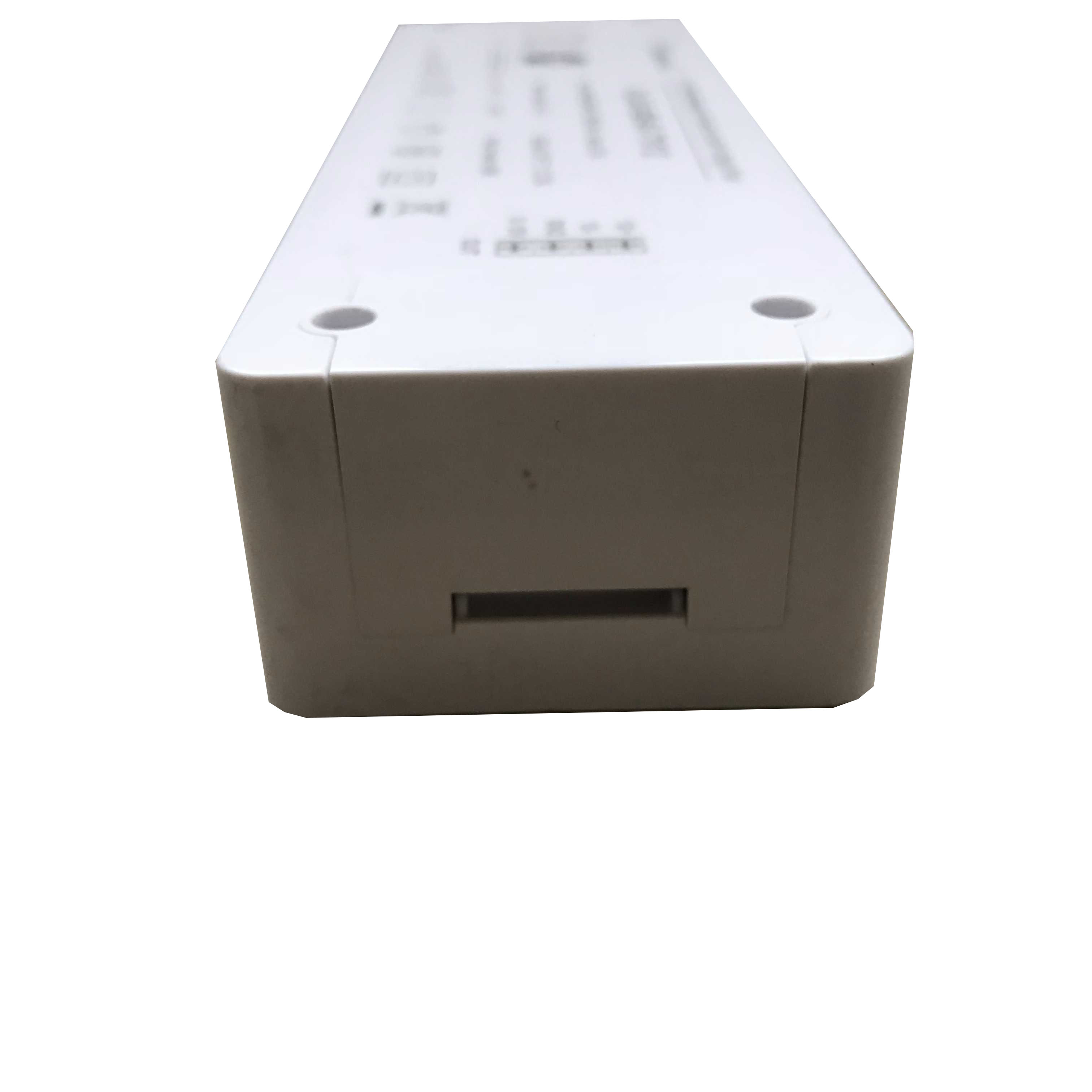

0-10v dimmable led driver 45watt 12v

Product Features:

These drivers are IP20 rated and are suitable for indoor installations. With universal input voltage ranging from 170 to 250VAC, the series of drivers are designed for commercial, industrial and residential applications. Our 0-10V dimming delivers smooth flicker-free linear dimming down to 0% with most LED’s and a wide variety of compatible dimmers. As always, a 3-year warranty is a standard on all Cheng Li xin products.



Features

0-10V dimmable - flicker free down to 0%

IP20 - Indoor Use

Ripple Free

Auto-Reset Protection for Short Circuit and Over-Temperature

Over Load Protection - CC Mode

Back

Product information

Specification

 Model

 CLX-SE45-TV12

Output

DC Voltage

 12V

Voltage Accuracy

 ±0.5V

Rated current

3.75A

Rated power

 45W

Input

 age Range

170-250VAC

 Frequency Range

 47~63HZ

 Power Factor ( Typ.)

 PF≥0.5

 Full Load Efficiency(Typ.)

 ≥85%



 Protection

 Short Circuit

 Hiccup mode, recovers automatically after fault condition is removed.

 Over voltage

 <270VAC

 Over temperature

 100°C±10°C shut down o/p voltage, re-power on to recover

 Environment

 Working TEMP.

 -25~+55°C

 Working Humidity

 10~90%RH,non-condensing

 Storage TEM.,Humidity

 -40~+70°C,10~90%RH

 TEMP.coefficient

 ±0.03%/°C(0~50°C)

 Vibration

 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes.

 Safety&EMC

 Safety standards

 EN601347-2-13

 Withstand voltage

 I / P- O /P ::3. 75KVAC I/P -FG :1. 88KVAC O/ P -FG :0 . 5KVAC

 Isolation resistance

 I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25°C/70%RH

 EMC IMMUNITY

 Compliance to EN61000-4-2,3,4,5,6,8, 11,EN61547,A light industry level

 EMC EMISSION

 Compliance toEN55015,EN61000-3-2 (≥50%load)

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°Cof ambient temperature.

2.Tolerance:includes set us tolerance,line regulation and load regulation .



Product Details

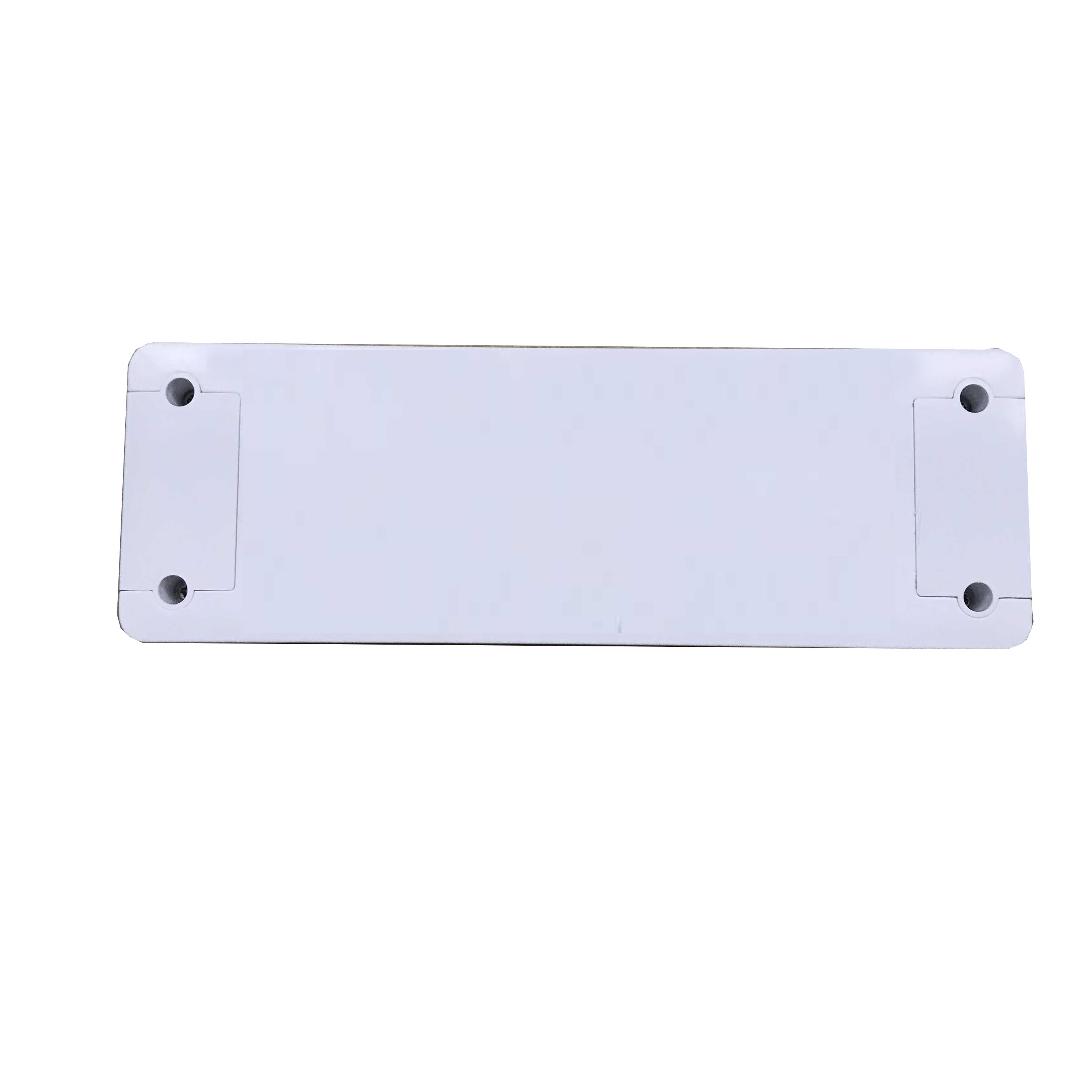

  • Dimension of Product (Unit: mm)

Dimensions: length × width × height = 155(±0.2)×53(±0.2)×30(±0.5)
Location hole size as below:

  • Connecting Drawing

0-10v dimmable led driver 45watt 12v
