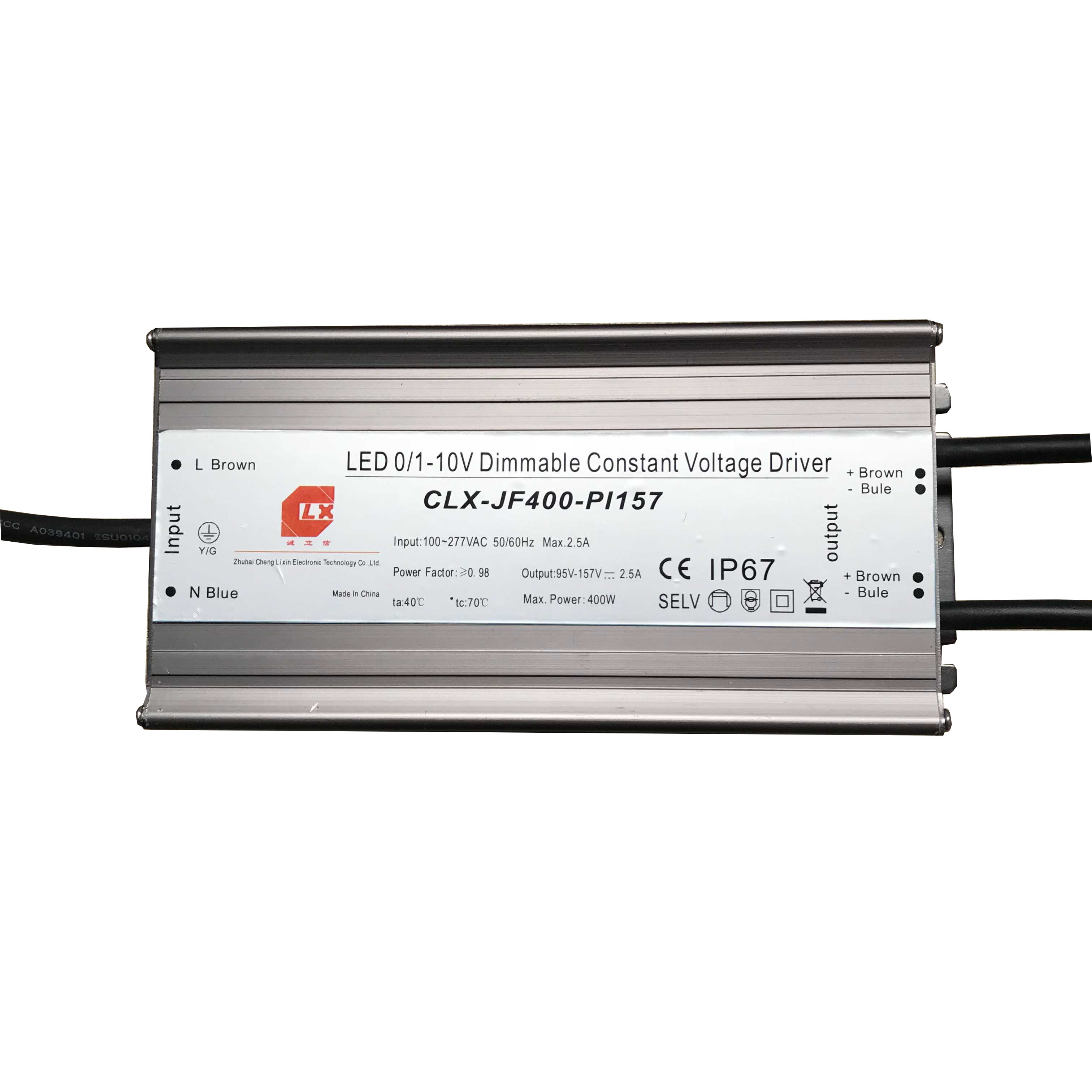

Model

 CLX-JF400-PI157

Output

DC Voltage

  95-157V

Voltage Accuracy

 ±0.5V

Rated current

2.5A

Rated power

 400W

 age Range

100-277VAC

 Frequency Range

 47~63HZ

 Power Factor ( Typ.)

 PF≥0.98

 Full Load Efficiency(Typ.)

 ≥85%

 Protection

 Short Circuit

 Hiccup mode, recovers automatically after fault condition is removed.

 Over voltage

 <270VAC

 Over temperature

 100°C±10°C shut down o/p voltage, re-power on to recover

 Environment

 Working TEMP.

 -25～+55°C

 Working Humidity

 10~90%RH,non-condensing

 Storage TEM.,Humidity

 -40~+70°C,10~90%RH

 TEMP.coefficient

 ±0.03%/°C(0~50°C)

 Vibration

 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes.

 Safety&EMC

 Safety standards

 EN601347-2-13

 Withstand voltage

 I / P- O /P ::3. 75KVAC I/P -FG :1. 88KVAC O/ P -FG :0 . 5KVAC

 Isolation resistance

 I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25°C/70%RH

 EMC IMMUNITY

 Compliance to EN61000-4-2,3,4,5,6,8, 11,EN61547,A light industry level

 EMC EMISSION

 Compliance toEN55015,EN61000-3-2 (≥50%load)

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°Cof ambient temperature.
