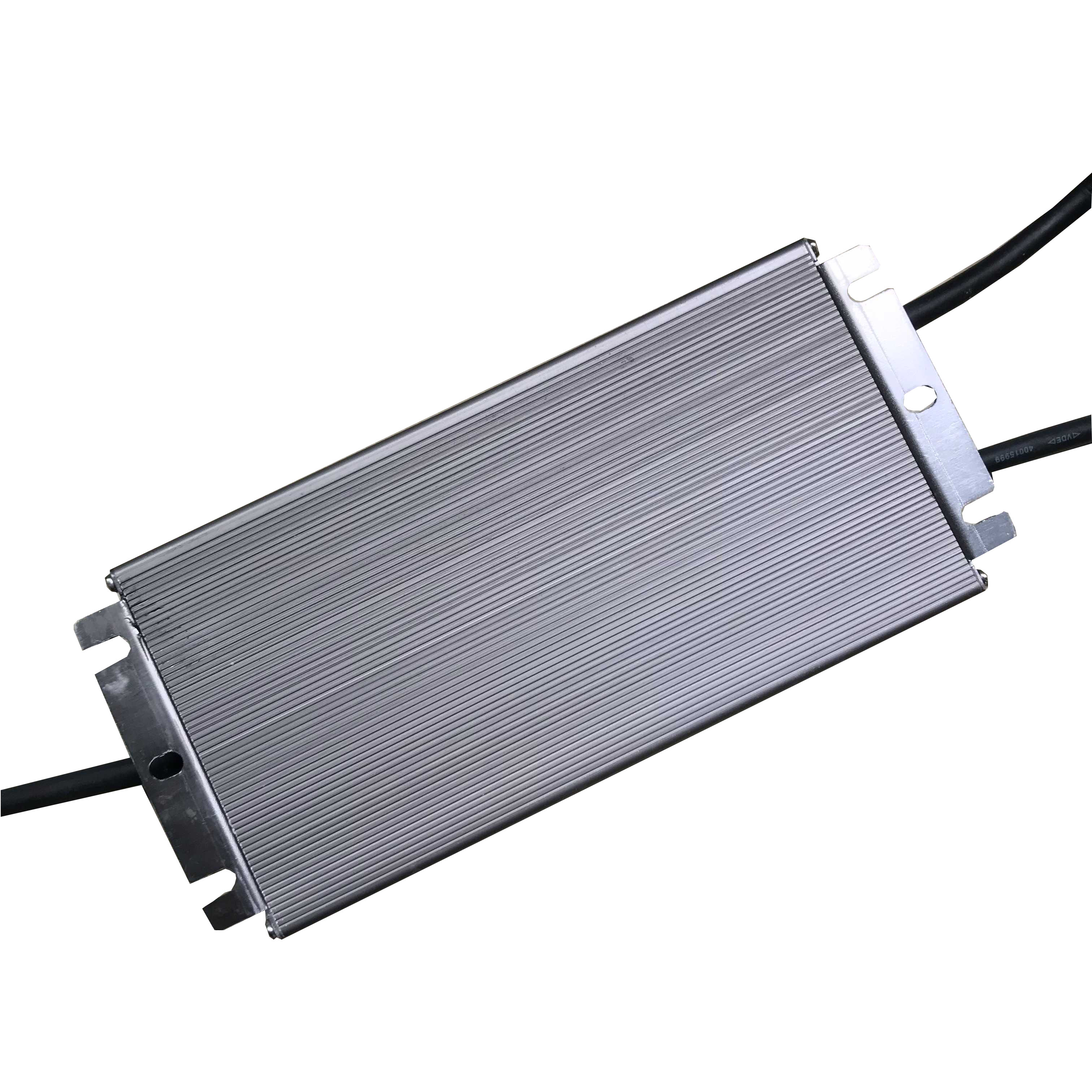

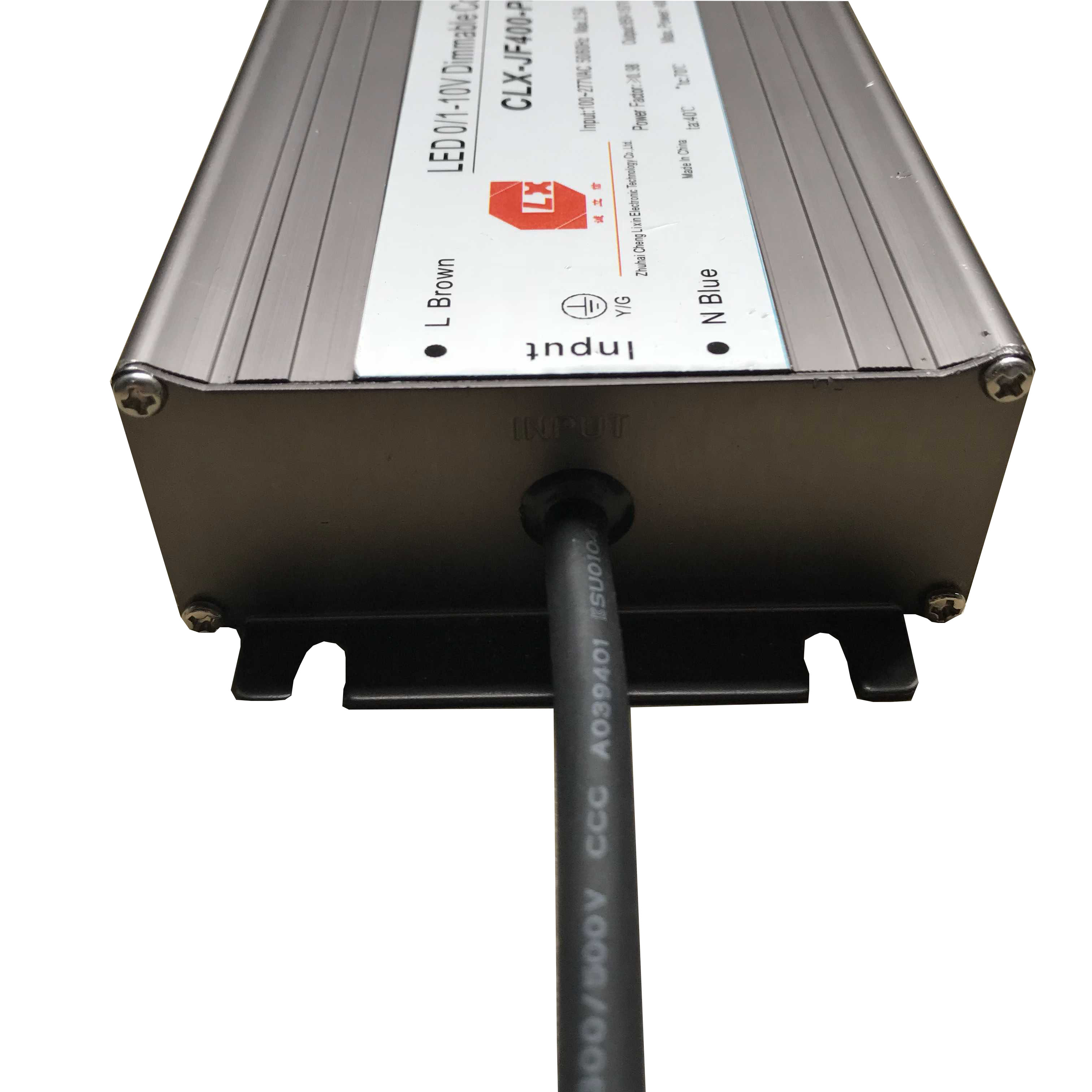

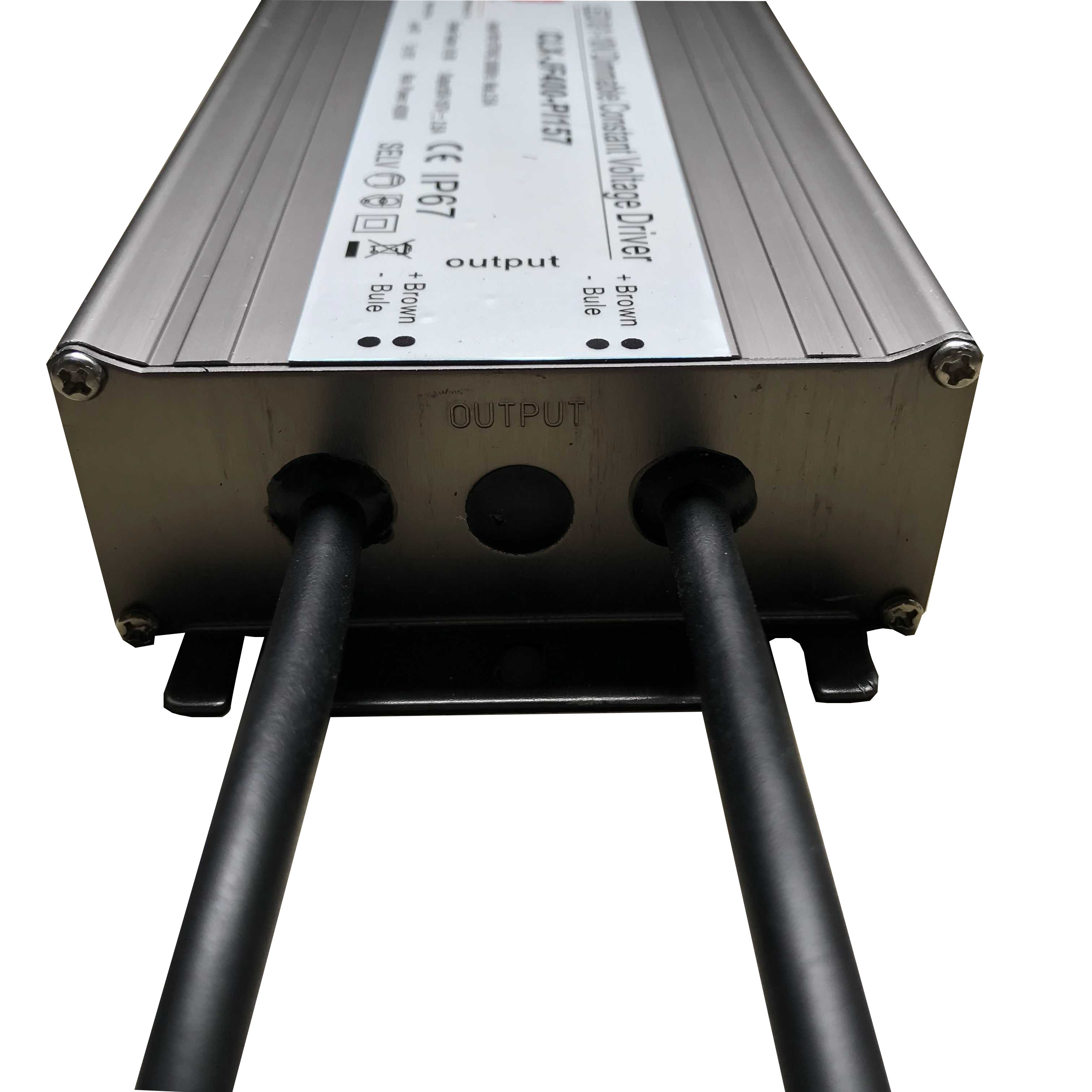

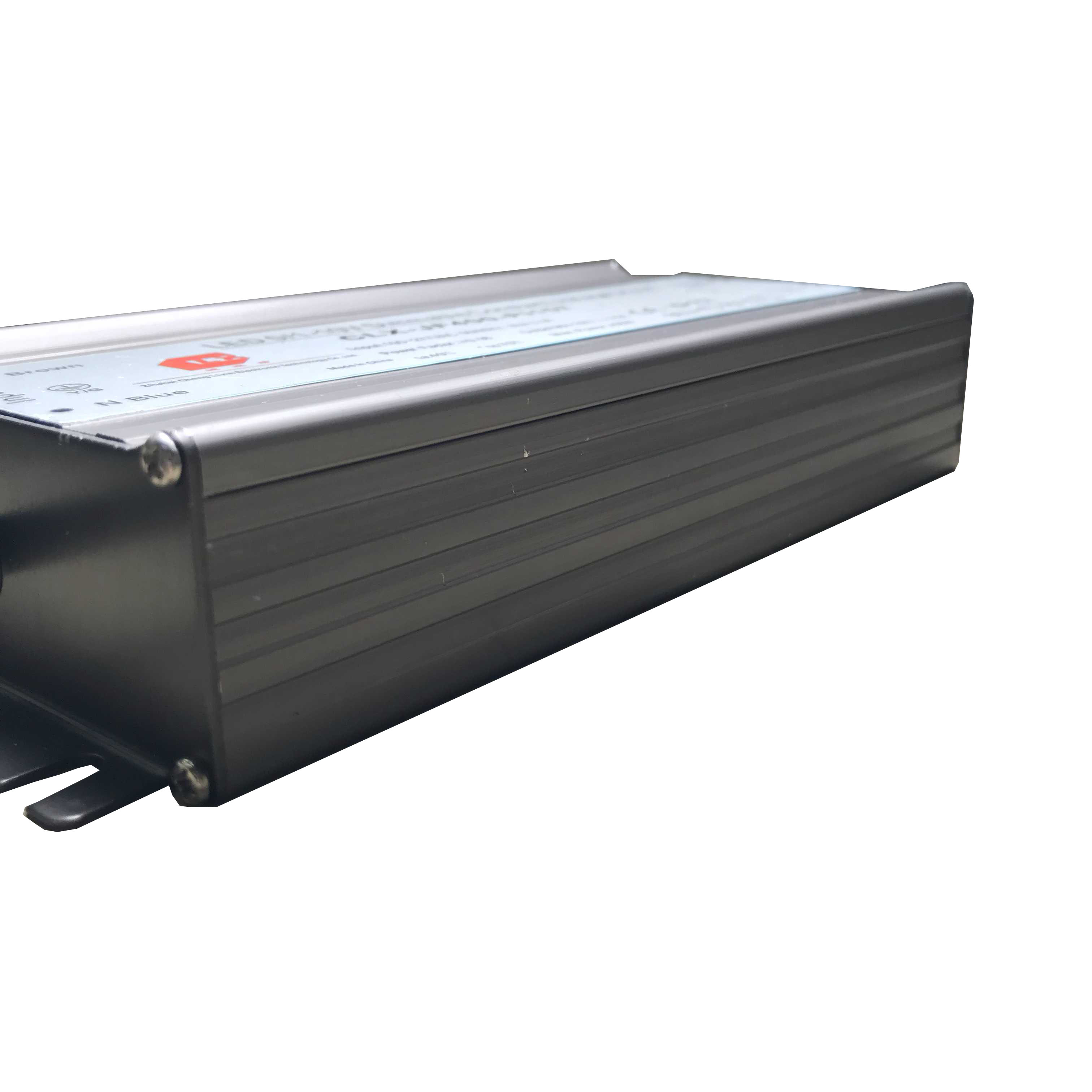

0-10v dimming no flicker no isloated 300w constant current 1000ma led driver for led strip

Product Features:

1.  High efficency and reliability,no flicker.
2. 100% full load burn-in test.
3.  Protection:Over load/Over voltage/Short circuit.
4.  Long life time warranty for 3 years.
5.  Led lighting driver supply products are widely used in wall washer lights,fountain lights,spot lights and other     outdoor lighting and ceiling lamps,panel lamps, track lamps and other indoor lamp.

Back

Product information

Specification

 Model

 CLX-JF300-PI157

Output

DC Voltage

  95-157V

Voltage Accuracy

 ±0.5V

Rated current

2A

Rated power

 300W

Input

 age Range

100-277VAC

 Frequency Range

 47~63HZ

 Power Factor ( Typ.)

 PF≥0.98

 Full Load Efficiency(Typ.)

 ≥85%



 Protection

 Short Circuit

 Hiccup mode, recovers automatically after fault condition is removed.

 Over voltage

 <270VAC

 Over temperature

 100°C±10°C shut down o/p voltage, re-power on to recover

 Environment

 Working TEMP.

 -25~+55°C

 Working Humidity

 10~90%RH,non-condensing

 Storage TEM.,Humidity

 -40~+70°C,10~90%RH

 TEMP.coefficient

 ±0.03%/°C(0~50°C)

 Vibration

 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes.

 Safety&EMC

 Safety standards

 EN601347-2-13

 Withstand voltage

 I / P- O /P ::3. 75KVAC I/P -FG :1. 88KVAC O/ P -FG :0 . 5KVAC

 Isolation resistance

 I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25°C/70%RH

 EMC IMMUNITY

 Compliance to EN61000-4-2,3,4,5,6,8, 11,EN61547,A light industry level

 EMC EMISSION

 Compliance toEN55015,EN61000-3-2 (≥50%load)

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°Cof ambient temperature.

2.Tolerance:includes set us tolerance,line regulation and load regulation .



Product Details

  • Dimension of Product (Unit: mm)

Dimensions: length × width × height = 210(±0.2)×95(±0.2)×40(±0.5)
