Product Features：
◆High efficiency.|

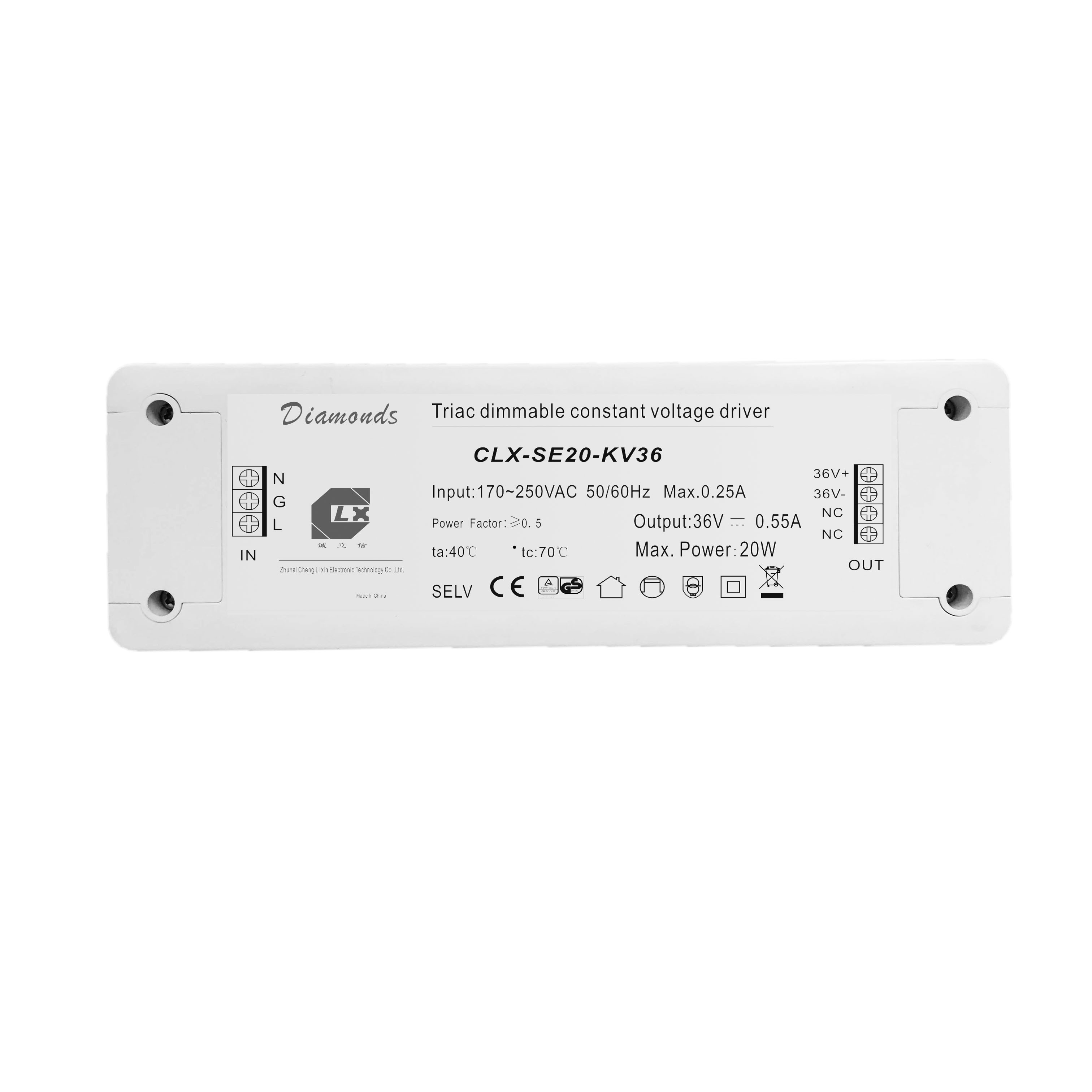

Model |
CLX-SE20-KV36 |
|
|
Output |
DC Voltage |
36V |
|
Voltage Accuracy |
±0.5V |
|
|
Rated current |
0.55A |
|
|
Rated power |
20W |
|
|
Input
|
age Range |
170-250VAC |
|
Frequency Range |
47~63HZ |
|
|
Power Factor ( Typ.) |
PF≥0.5 |
|
|
Full Load Efficiency(Typ.) |
≥85% |
|
|
AC Current(Typ.) |
0.12A |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
Over voltage |
<270VAC |
|
|
Over temperature |
100°C±10°C shut down o/p voltage, re-power on to recover |
|
|
Environment |
Working TEMP. |
-25～+55°C |
|
Working Humidity |
10~90%RH,non-condensing |
|
|
Storage TEM.,Humidity |
-40~+70°C,10~90%RH |
|
|
TEMP.coefficient |
±0.03%/°C(0~50°C) |
|
|
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes. |
|
|
Safety&EMC |
Safety standards |
EN601347-2-13 |
|
Withstand voltage |
I / P- O /P ::3. 75KVAC I/P -FG :1. 88KVAC O/ P -FG :0 . 5KVAC |
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25°C/70%RH |
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8, 11,EN61547,A light industry level |
|
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≥50%load) |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°Cof ambient temperature.
2.Tolerance:includes set us tolerance,line regulation and load regulation .
|
|

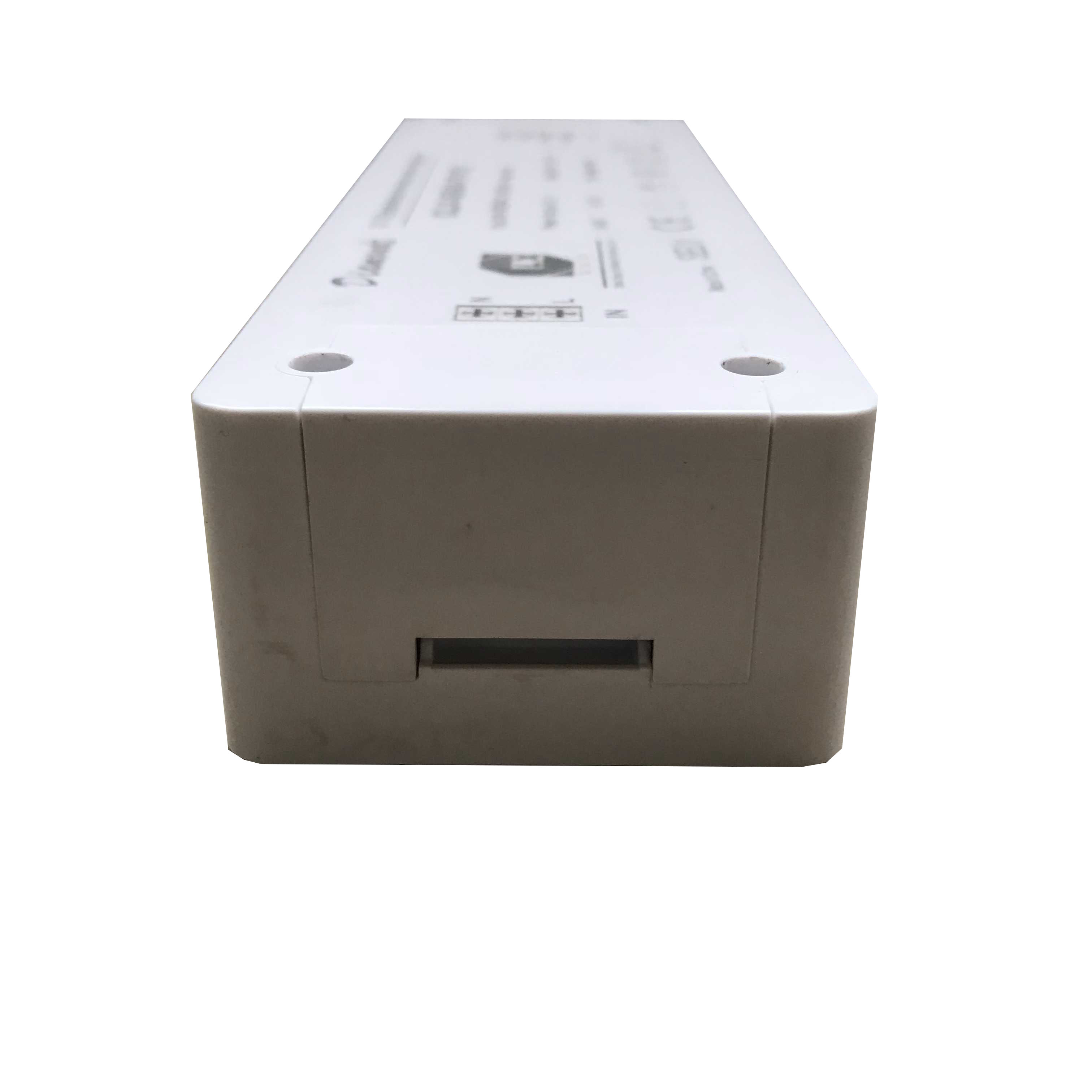

Dimensions: length × width × height = 155（±0.2）×53（±0.2）×30（±0.5）
Location hole size as below:
external triac dimmable led driver mr16 circuit 20w IP20
Applications
Certifications
Company Information
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 500pcs.
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 2-5 years warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
B:Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
