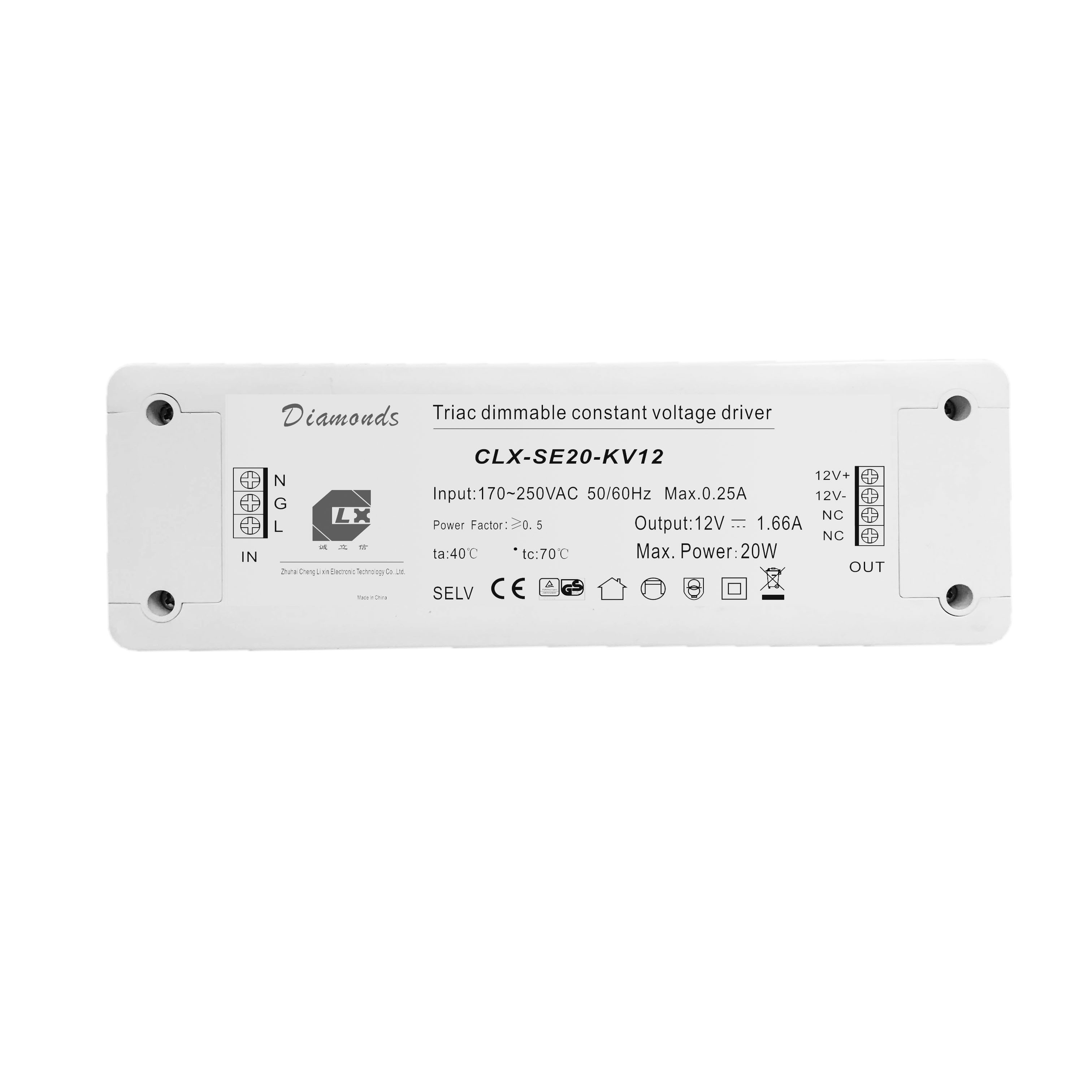

constant voltage triac dimmable led driver converter 12v 20w

Product Features:

◆High efficiency.
◆Light weight.Low shipping cost.
◆Better radiating function,longer lifespan.
◆Over-voltage protection,over-temperature protection,lightning and shirt circuit protection.
◆Light weight, compact structure.
◆3 years warrantly

Back

Product information

Specification

 Model

 CLX-SE20-KV12

Output

DC Voltage

 12V

Voltage Accuracy

 ±0.5V

Rated current

 1.66A

Rated power

 20W

Input

 age Range

170-250VAC

 Frequency Range

 47~63HZ

 Power Factor ( Typ.)

 PF≥0.5

 Full Load Efficiency(Typ.)

 ≥85%

 AC Current(Typ.)

 0.12A

 Protection

 Short Circuit

 Hiccup mode, recovers automatically after fault condition is removed.

 Over voltage

 <270VAC

 Over temperature

 100°C±10°C shut down o/p voltage, re-power on to recover

 Environment

 Working TEMP.

 -25~+55°C

 Working Humidity

 10~90%RH,non-condensing

 Storage TEM.,Humidity

 -40~+70°C,10~90%RH

 TEMP.coefficient

 ±0.03%/°C(0~50°C)

 Vibration

 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes.

 Safety&EMC

 Safety standards

 EN601347-2-13

 Withstand voltage

 I / P- O /P ::3. 75KVAC I/P -FG :1. 88KVAC O/ P -FG :0 . 5KVAC

 Isolation resistance

 I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25°C/70%RH

 EMC IMMUNITY

 Compliance to EN61000-4-2,3,4,5,6,8, 11,EN61547,A light industry level

 EMC EMISSION

 Compliance toEN55015,EN61000-3-2 (≥50%load)

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°Cof ambient temperature.

2.Tolerance:includes set us tolerance,line regulation and load regulation .



Product Details

  • Dimension of Product (Unit: mm)

Dimensions: length × width × height = 155(±0.2)×53(±0.2)×30(±0.5)
Location hole size as below:




  • Connecting Drawing



constant voltage triac dimmable led driver converter 12v 20w


Applications









Certifications





Company Information





FAQ


Q1. Can I have a sample order for led power supply?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 500pcs.

Q3. Do you have any MOQ limit for led power supply order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led power supply?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led power supply product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
B:Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
