2.4G wireless dimmable &colour-temp electronic dimmable led driver 36V 30W

Product Features:

1.Constant current/voltage mode power supply
2.Protection:Short circuit/Overload/Over voltage/Over temperature
3.Dimmable by wireless connection, remote control
4.IP20 design for indoor applications
5.100% burn-in tests , full-round tests
6.3 years warranty
7.Customize service, available price and reliable quality

Back

Product information

Specification

 Model

 CLX-SE30-TV36-2.4G

Output

DC Voltage

 36V

Voltage Accuracy

 ±0.5V

Rated current

0.83A

Rated power

 30W

Input

 age Range

170-250VAC

 Frequency Range

 47~63HZ

 Power Factor ( Typ.)

 PF≥0.5

 Full Load Efficiency(Typ.)

 ≥85%



 Protection

 Short Circuit

 Hiccup mode, recovers automatically after fault condition is removed.

 Over voltage

 <270VAC

 Over temperature

 100°C±10°C shut down o/p voltage, re-power on to recover

 Environment

 Working TEMP.

 -25~+55°C

 Working Humidity

 10~90%RH,non-condensing

 Storage TEM.,Humidity

 -40~+70°C,10~90%RH

 TEMP.coefficient

 ±0.03%/°C(0~50°C)

 Vibration

 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes.

 Safety&EMC

 Safety standards

 EN601347-2-13

 Withstand voltage

 I / P- O /P ::3. 75KVAC I/P -FG :1. 88KVAC O/ P -FG :0 . 5KVAC

 Isolation resistance

 I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25°C/70%RH

 EMC IMMUNITY

 Compliance to EN61000-4-2,3,4,5,6,8, 11,EN61547,A light industry level

 EMC EMISSION

 Compliance toEN55015,EN61000-3-2 (≥50%load)

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°Cof ambient temperature.

2.Tolerance:includes set us tolerance,line regulation and load regulation .



Product Details

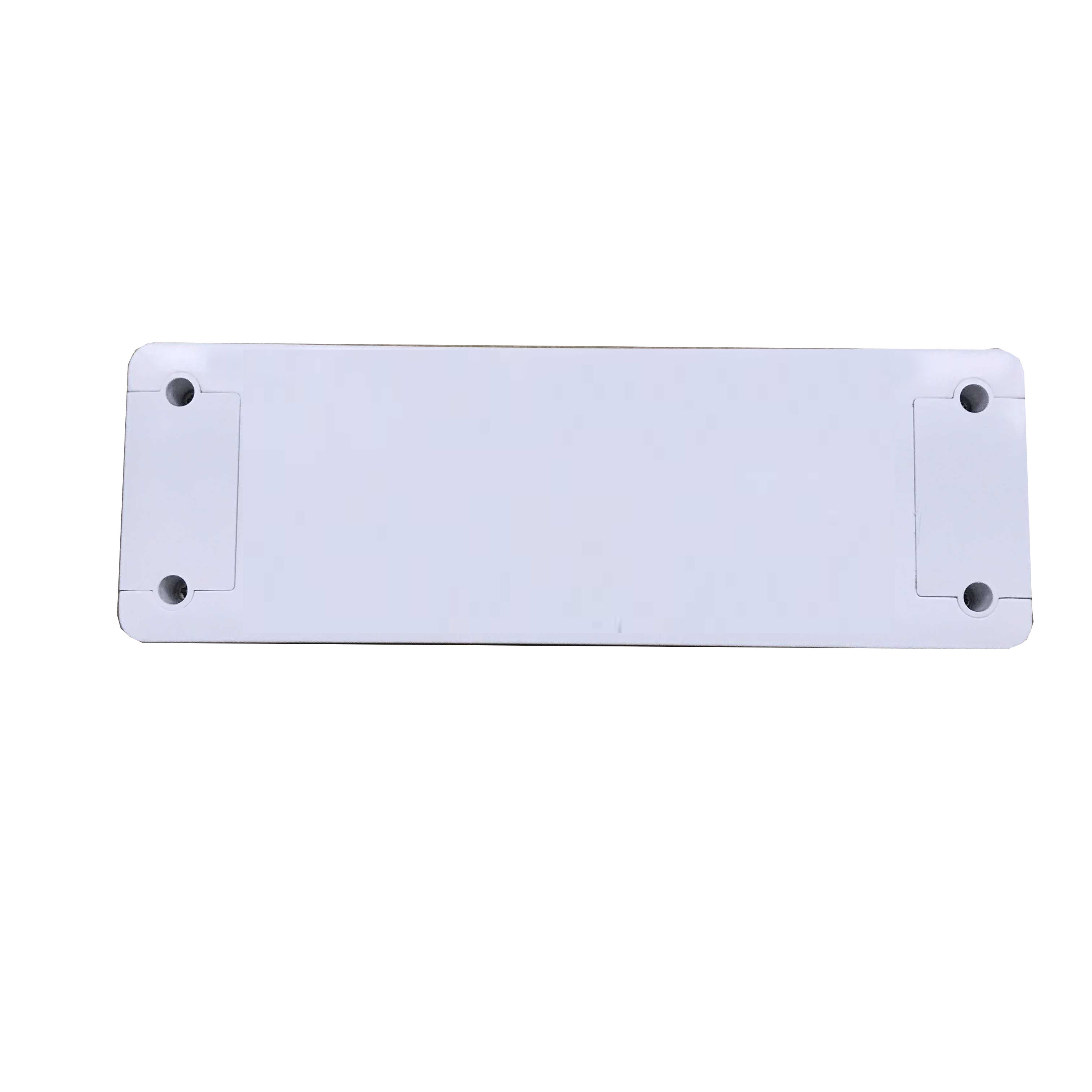

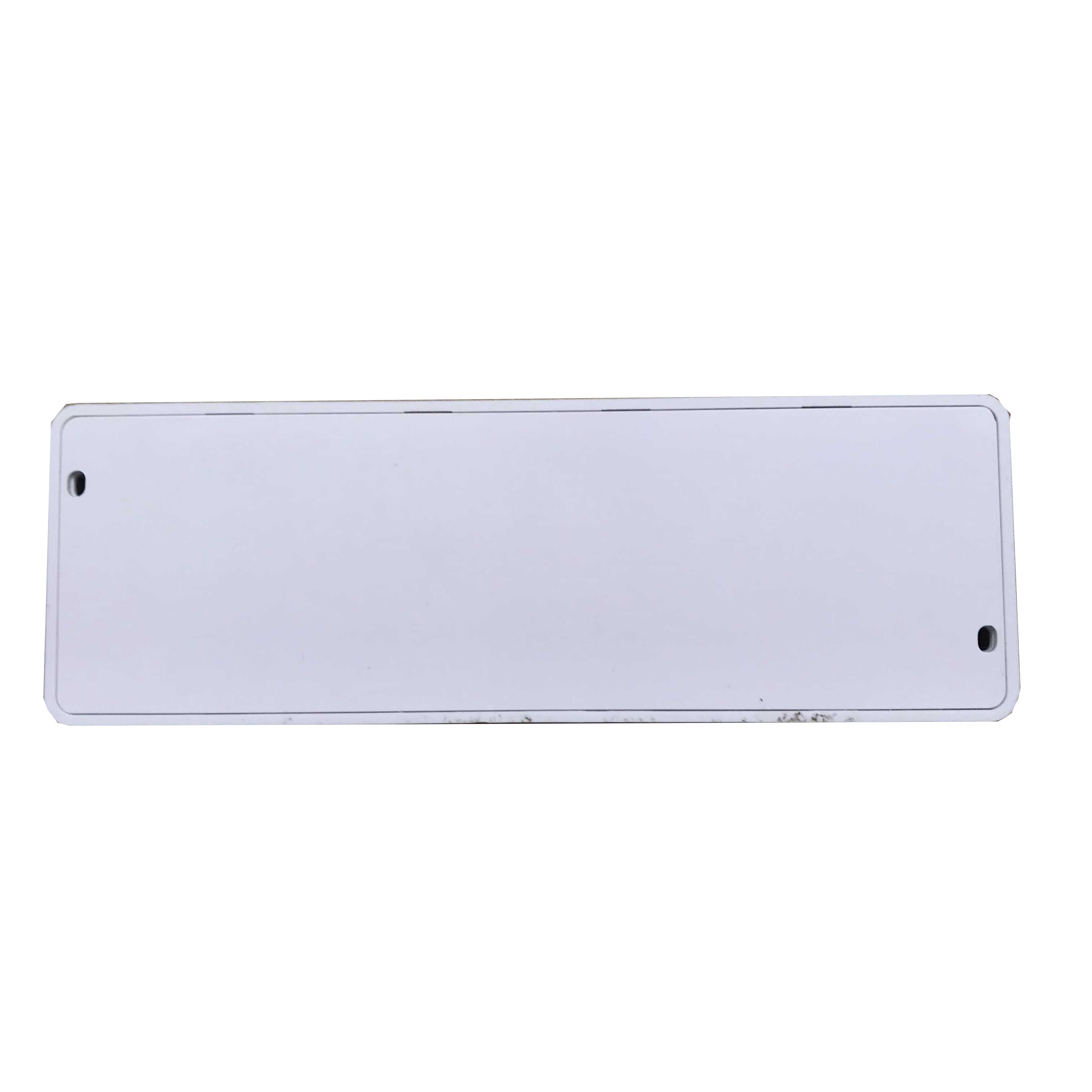

  • Dimension of Product (Unit: mm)

Dimensions: length × width × height = 155(±0.2)×53(±0.2)×30(±0.5)
Location hole size as below:
