Product Features：
A comprehensive dimmer suitable for indoor LED Lighting.
0-100% dimming range via logarithmic characteristic, perfect for human vision.
• Constant Voltage Design
• Protections: Short circuit/ Over voltage
• Built-in PFC function (PFC>0.5)
• Fully isolatedr
• Suitable for LED lighting and moving sign
applications
|
Model |
CLX-SE80-DV36 |
|
|
Output |
DC Voltage |
36V |
|
Voltage Accuracy |
±0.5V |
|
|
Rated current |
2.22A |
|
|
Rated power |
80W |
|
|
Input
|
age Range |
170-250VAC |
|
Frequency Range |
47~63HZ |
|
|
Power Factor ( Typ.) |
PF≥0.5 |
|
|
Full Load Efficiency(Typ.) |
≥85% |
|
|
|
|
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
Over voltage |
<270VAC |
|
|
Over temperature |
100°C±10°C shut down o/p voltage, re-power on to recover |
|
|
Environment |
Working TEMP. |
-25～+55°C |
|
Working Humidity |
10~90%RH,non-condensing |
|
|
Storage TEM.,Humidity |
-40~+70°C,10~90%RH |
|
|
TEMP.coefficient |
±0.03%/°C(0~50°C) |
|
|
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes. |
|
|
Safety&EMC |
Safety standards |
EN601347-2-13 |
|
Withstand voltage |
I / P- O /P ::3. 75KVAC I/P -FG :1. 88KVAC O/ P -FG :0 . 5KVAC |
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25°C/70%RH |
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8, 11,EN61547,A light industry level |
|
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≥50%load) |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°Cof ambient temperature.
2.Tolerance:includes set us tolerance,line regulation and load regulation .
|
|

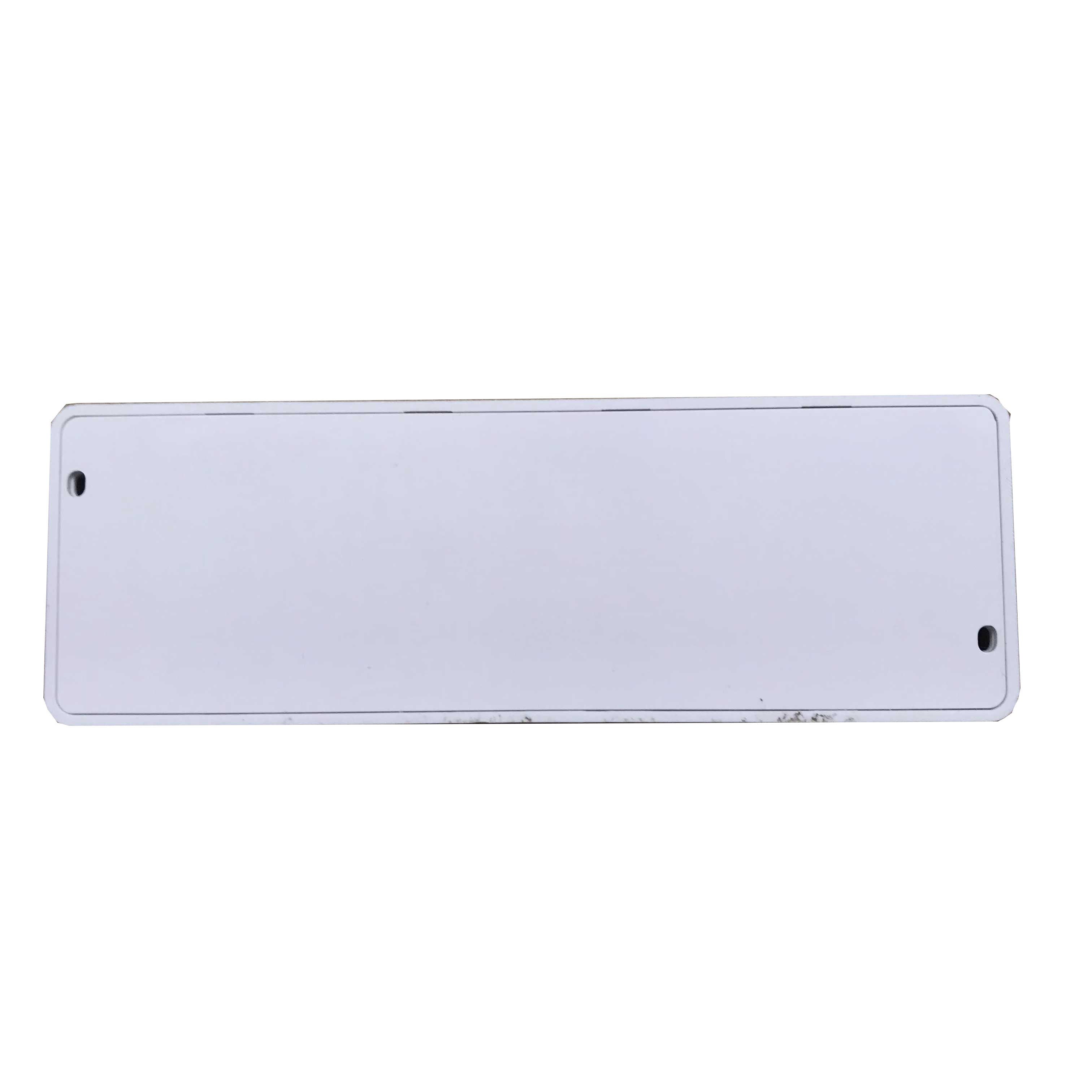

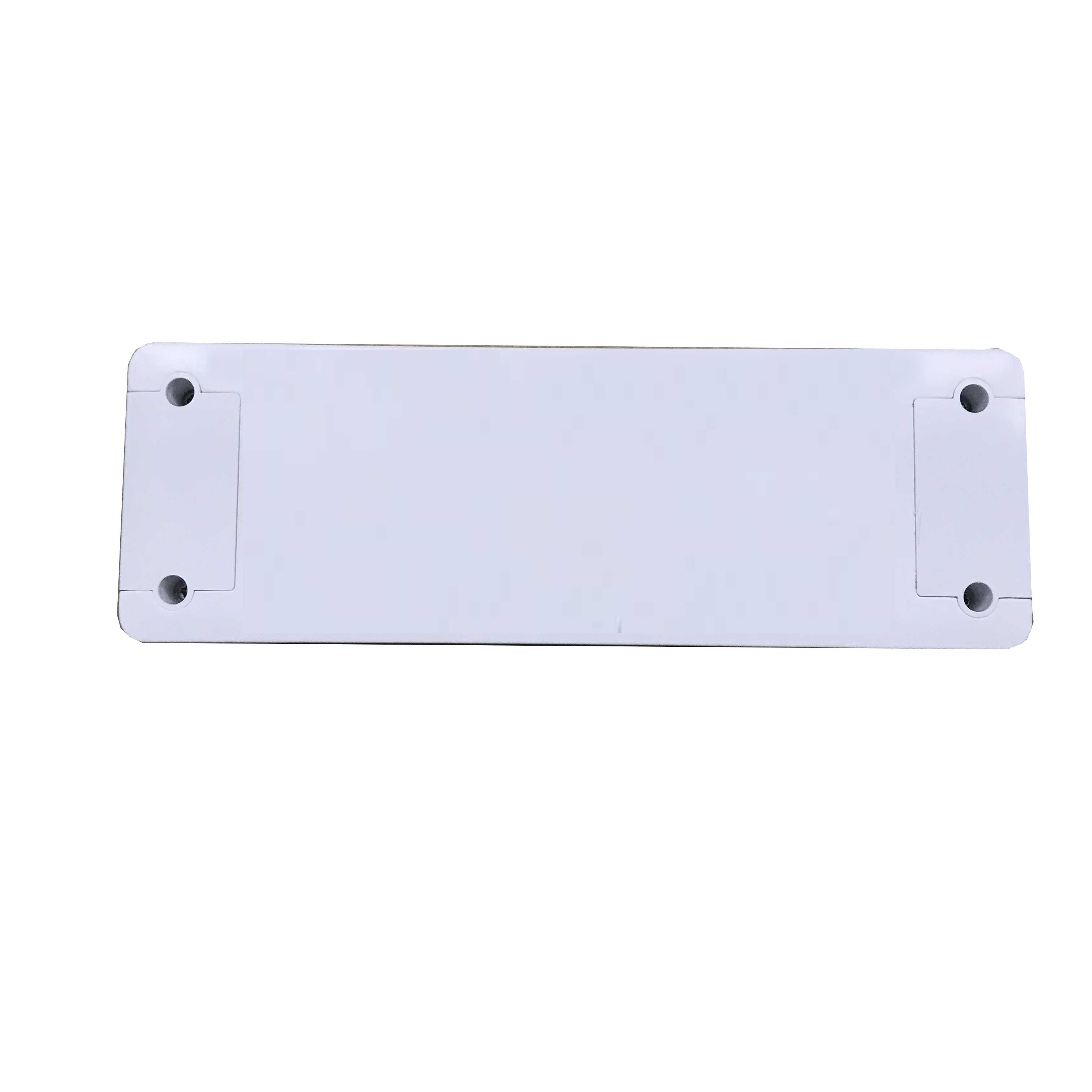

Dimensions: length × width × height = 190（±0.2）×64（±0.2）×31（±0.5）
Location hole size as below:
36volt 80w dali led driver dimmable hot sales in global ce rohs
